TCS9225
Over Voltage and Over Current Protector
Product Description
TCS9225can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected.
The system is positive overvoltage protected up to 36V.
The internal over voltage thresholds (OVLO) is 6.1V and internal over current thresholds (OCP) is 2.5A.
TCS9225 also has internal over temperature protect (OTP) function and it can monitor chip temperature to protect thedevice.

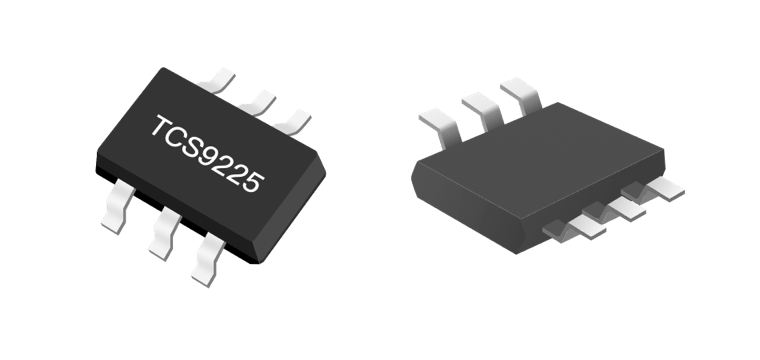

The device is packaged in advanced full-Green Packaging (SOT23-6L)
主要特点
- Typical Ron: 120mΩ@1.0A
- VIN Operating Range: 2.5 to 36V
- Internal Overvoltage Lockout: 6.1V
- Internal Overcurrent Lockout: 2.5A
- OVP Response time: < 500ns
- Output Discharge
- Startup Debounce Time: 8ms
- Output Power on time: 8ms
- Internal OTSD Protection
- SOT23-6 Package
典型应用图
订购资讯
| Part Number | Package | Quality | Operation Temp. |
|---|---|---|---|
| TCS9225_F | SOT23-6 | 3000 | -40~85℃ |
