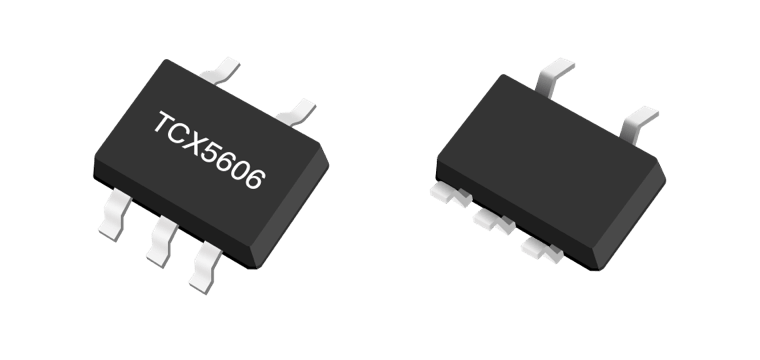

TCX5606
One Cell Li-ion and Li-poly Battery Protection IC
Product Description
TheTCX5606 is a high integration solution for lithium-ion/polymer battery protection.TCX5606 contains internalpower MOSFET. high-accuracy voltage detection circuits and delay circuits,TcX5606 has all the protectionfunctions required in the battery application including overcharging, over discharging, overcurrent and load shorcircuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. Thlow standby current drains little current from the cell while in storage. The device is not only targeted for digitacellular phones, but also for any other Li-lon and Li-Poly battery-powered information appliances requiring long
term battery life.The TCX5606 requires a minimal number of readily available, external components and is available in a space savingSOT23-5 package.
主要特点
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection:
- Over Discharge Current
- Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- RoHS Compliant and Lead (Pb) Free
- 20mΩ Low RSS(ON) Internal Power MOSFET
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption
- Operation Mode: 0.7μA typ.
- Power-down Mode: 0.5μA typ.
- Only One External Capacitor Required
- Available in SOT23-5 Package
- -40°C to +85°C Temperature Range
典型应用图
订购资讯
| Marking | Model | Description | Package | T/R Qty |
|---|---|---|---|---|
| MPYLL | TCX5606_E | TCX5606 One Cell Li-ion and Li-poly Battery Protection IC.9A.SOT23-5 | SOT23-5 | 3000 PCS |
