TCL71XX

Low power consumption, high performance 150mA LDO

产品描述

The TCL71XX is low power consumption very low 2uA ground current, high performance 150mA LDO.

The family uses an advanced CMOS process and a PMOSFET pass device to achieve fast start-up, with high output voltage accuracy . The TCL71XX is stable with a 10.0μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 1% over all load, line, process, and temperature variations. It is fully specified from TJ =–40°C to +125°C and is offered in a SOT89-3 ,SOT23-3 package.

主要特点

  • Wide Input Voltage Range: 2V to 30V
  • Up to 150mA Load Current
  • Very Low IQ: 2µA@Typ
  • High PSRR: 75dB@100Hz; 51dB@1KHz
  • Ultra Low Dropout: 650mV at 150mA Load @VOUT=5V
  • Short current protection:60mA
  • Excellent Load/Line Transient Response
  • Line Regulation: 0.05% typical

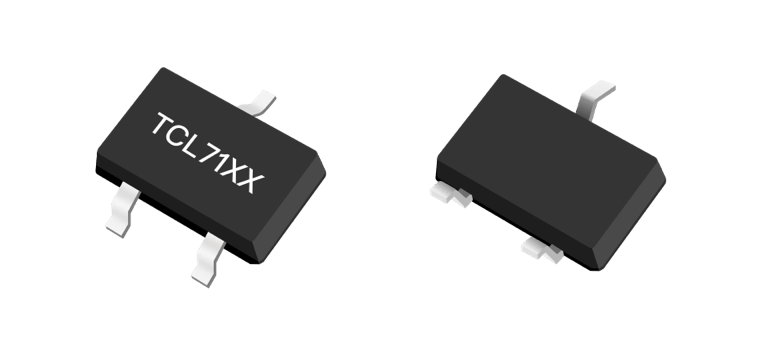

  • Package: SOT89-3,SOT23-3

典型应用图

Product Application Image
