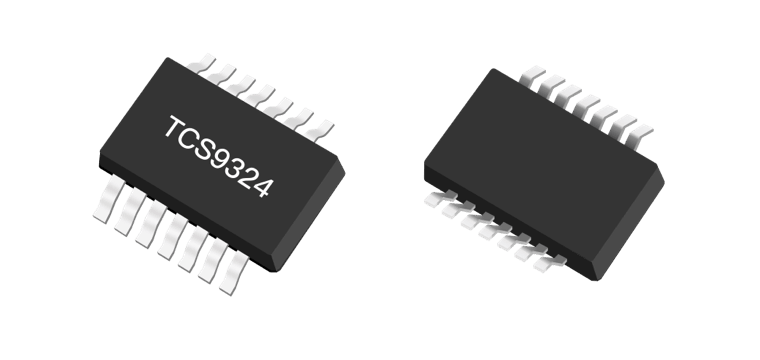

TCS9324
QUADRUPLE OPERATIONAL AMPLIFIERS
产品描述
The TCS9324 consists of four independent, highgain,internallyfrequencycompensatedoperational amplifiersWhich were designedspecifically to operate from a single power supplyover a wide range of voltages. Operation fromsplit power supplies the magnitude of the powervoltage.Application areassupplyincludeTransducer amplifiers, DC gain blocks and all theconventional op amp circuits.
主要特点
- Internally frequency compensated for unitygain.
- Large DC voltage gain:100dB,
- Wide power supply range: 3V~30V(or ±1.5V~ ±15V)
- Input common-mode voltage range includes ground.
- Large output voltage swing: 0V DC to Vcc-1.5V DC
- Power drain suitable for battery operation
